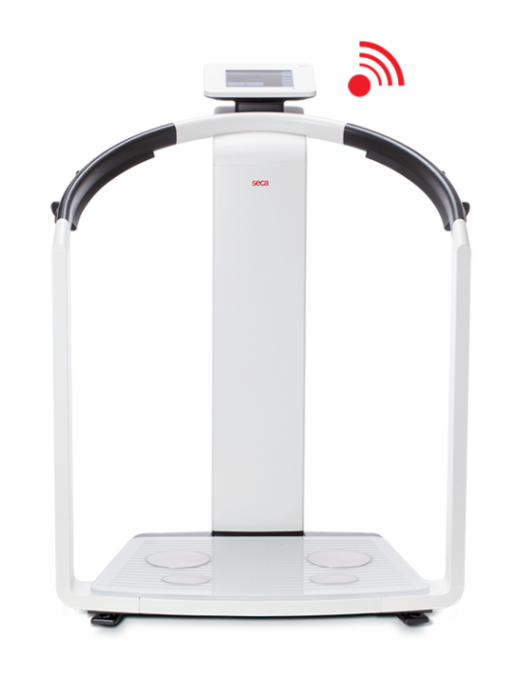

Seca mBCA 515 Medical Body Composition Analyzer

Additional information

Seca mBCA 515 Medical Body Composition Analyzer

Medically valid, medically precise, medically useful. The medical Body Composition Analyzer (mBCA) by seca breaks down weight into body compartments relevant to the practice of medicine, namely, Fat Mass and Fat-Free Mass, Body Water (made up of extracellular water and intracellular water) and Skeletal Muscle Mass.

Measurements are processed by six analytical modules and presented in easy-to-understand graphics. seca has conducted validation studies that of precision is found in the device itself, e.g., in the standing aid function, which guarantees that the subject is always measured in the right position, in the hand-held electrodes which prevent measurement errors and in the large glass platform which is suitable for weighing patients up to 300 kilograms.

Additional advantages include the short measurement time of less than 20 seconds and the simple and intuitive navigation over the touch-screen display. In brief, the seca mBCA is the best help for the diagnosis of many diseases such as current epidemics of obesity, diabetes or malnutrition.

seca analytics mBCA 115 medical PC software for professional body composition analysis

The PC software seca analytics mBCA 115 supplements the mBCA 515 with several practical functions. One of them allows the device to transfer data and measurements wirelessly into any Electronic Medical Record (EMR) system. The software also offers the Cardiometabolic Risk module, a therapy planner for dieting and the option of compiling and printing a patient’s examination results. The software output is of great help to the doctor during post-examination consultation with the patient.

Features:

• Capacity: 300 kg
• Division: 50 g
• Medical device class: IIa
• Dimensions (WxHxD): 976 x 1.251 x 828 mm
• Display type: 8.4” touch-screen display, can be rotated 360°
• Interfaces: seca 360° wireless, USB 2.0, Ethernet
• Measurement method: 8-point Bioelectrical Impedance Analysis
• Measurement current: 100 μA
• Measurement time, normal mode: max. 20 seconds

System requirements:

• Supports operating systems: Windows XP (SP3), Windows Vista (SP1), Windows 7, Windows Server 2003 (SP2) and Windows Server 2008 R1 (SP2)
• Processor: 1.2 GHz or higher
• Required available hard disk space: minimum 1 GB
• Required available RAM: minimum 512 MB RAM
• Peripherals: DVD drive
• Ports: For use with seca devices USB 2.0 or serial interface (RS232)
• Monitor: 1024x768, High Color (16-bit), 32-bit (recommended)
• mBCA 115 is included with mBCA 515
• INCLUDES FREE DEMO
